I recently found a photo with a silhouette and bokeh at DSLR vs Mirrorless: Wedding Photographer's review. The subjects are as dark as the background, there is only a rim light shaping their heads. I know that the yellow circles are small, out-of-focus light bulbs. I am interested in how the silhouette is made and how the it was setup with the light bulbs. Could it be a composite?

silhouette photo

Glorfindel
  • 1,128
  • 1
  • 11
  • 21
robert
  • 553
  • 5
  • 11
  • I somehow misread the first sentence as "welding photographer" - and the out-of-focus lights naturally fit, as sparks! – Toby Speight Sep 11 '18 at 15:10
  • 2
    @EricDuminil I've updated my answer to include an in-camera way of things. That doesn't take away the fact that it can also be done in post. It's Robert's judgement on what he can accomplish wherever he wants to do this shot and whether or not in-camera or post techniques are used (or hell, both at the same time!). It's all about having a bag of tricks from which to create from. – OnBreak. Sep 11 '18 at 16:49
  • @scottbb, my question is about the bokeh, the rim light, and how to put the two together. Your link treats only the bokeh. How can my question be its duplicate? – robert Sep 12 '18 at 02:59
  • Fair point. This question has certainly generated some good answers. Retracted. – scottbb Sep 12 '18 at 03:01
  • Related question (for the foreground bokeh): Maximizing bokeh in the foreground? – scottbb Sep 12 '18 at 03:02
  • Related, but there is nothing about the rim light. I also noted that I know that the yellow circles are small, out-of-focus light bulbs, so the main question is not about he bokeh. – robert Sep 12 '18 at 03:06
  • Understood. The point of the related question link is for future readers, and to help the Stack Exchange engine generate the list of Related questions over on the right side. – scottbb Sep 12 '18 at 03:24
  • Nice question! Seems like this particular example would be difficult but not impossible to pull off in camera -- you'd need a pretty strange cluster of xmas lights and a very cooperative couple in order to line things up just right. Seems much more likely to me that this example is a composite, although Hueco does show it could be done in one shot in principle... – jkf Sep 12 '18 at 05:43

3 Answers3

55

There are two ways to go about accomplishing this - in camera and in post.

Both techniques will rely on shooting a rim-lit subject.

Put a flash behind the subject. In my image, I actually had the flash cranked up WAY too much, so I'm getting additional light acting as fill (bouncing off the couch and back toward the front of the subject):

Set-up below shot is below. Flash is a 430EX set to 105mm, full power, with 3 MagMod grids attached. They limit the light to 15 degree beam. I'm shooting directly opposite the flash, putting Yoshi right between me and the flash.

enter image description here

And the resultant image:

enter image description here

Technique 1: post pro add in

Now, some rough clean up work to darken everything around my couple:

enter image description here

And finally, topping with some stock bokeh shot. Bokeh meshed using Add method and slightly less opacity. Bokeh used from https://www.pexels.com/photo/time-lapse-photo-of-lights-220118/ under CC license.

enter image description here

Assuming you take the time to do this right, I'm sure you could do a lot better. But, to recap:

  • Have a point light source firing from behind, this is called a rim light
  • Darken any areas that you want gone in post
  • Add a stock bokeh shot on top, whether yours or purchased. (Creating your own stock bokeh photos is simple and fun. All you really need are some Christmas lights. Here's a good how-to)

Technique 2: in camera

And here's the shot redone holding this string light in front of the lens. It's a bit bright where I am right now and I didn't darken out the BG. Please excuse that for this example...

Photo of the lights:

enter image description here

Photo of the shot:

enter image description here

Having a big handful of Christmas lights would be better than this simple string. Also, it's terribly hard to use string lights when a cat is in the room.

To restate: These are two very different techniques to accomplishing the same thing. Many photographers are in-camera purists and will despise the above technique. If you have the time, by all means, go for in-camera. If you are shooting this on location with a non-model couple, then I would advise getting a shot without the foreground bokeh...just in case you need it later, because, now you know, you can do this technique in post quite easily.

OnBreak.
  • 20,509
  • 5
  • 49
  • 81
  • 28
    what a beautiful couple – osullic Sep 10 '18 at 21:17
  • 3
    @osullic storm troopers are into blue yoshis. I don't know why - I just go with it. – OnBreak. Sep 10 '18 at 21:19
  • 2
    Why do you think you need photoshop to achieve this effect? It's perfectly possible to do without. – Eric Duminil Sep 11 '18 at 08:00
  • 3
    If we're just going to photoshop anyways, you could also create the silhouette pretty easily from any normal photo – BlueRaja - Danny Pflughoeft Sep 11 '18 at 09:09
  • 1
    I'd say that you don't need to use compositing to add the bokeh. I'm not sure if the result would be clean, but if you use a long, fast lens and fine, dim christmas lights in the foreground, you could create this without compositing. If you don't want the lights to obscure your object, you could put in a sheet of glass at an angle, so your bokeh comes from the reflection of those lights while your object is unobscured. – detuur Sep 11 '18 at 12:21
  • 1
    The original looks like a single shot just as Eric pointed out. Just hang some string lights in the front, use a dark room, backlight with a harsh spot and use long/fast glass. – Matthew Whited Sep 11 '18 at 16:11
  • 1
    Excellent answer now! Thanks for the hard work and update. – Eric Duminil Sep 11 '18 at 16:56
20

Background bokeh straight out of camera

The above picture isn't necessarily a composite. You can achieve a similar effect straight out of camera.

Here's a picture I took almost 10 years ago:

One more cup of bokeh

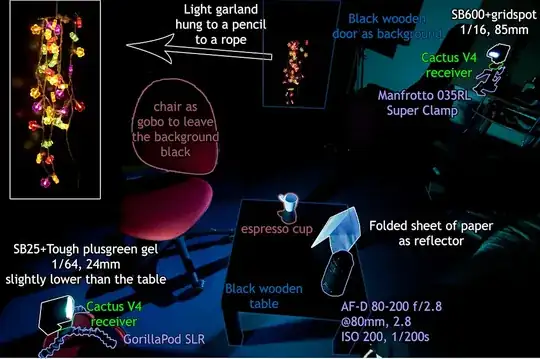

And here's the setup:

enter image description here

  • SB600+gridspot, back camera right, 1/16, 85mm
  • SB25+Plusgreen gel, camera left, 1/64, 24mm.
  • One chair as a big gobo to prevent light from spilling to the background.
  • One folded piece of paper, front camera right, to reflect the light from SB25 and soften the dark transition between the 2 lit parts of the cup.
  • Christmas garland on the background to get the bokeh bubbles.
  • Both flashes triggered by Cactus V4
  • D90 + 80-200 f/2.8
  • 80mm, f/2.8, 1/200s, ISO 200´

Silhouette

By removing the flash at front camera left and the sheet of paper, you would get the silhouette via rim lighting.

Foreground bokeh straight out of camera

In order to have the bokeh bubbles in front of the couple, you could shoot through the light garland instead of having it in the background. You'll have to hand hold it with your left hand, have an assistant hold it or hang it somewhere.

Here are two examples of foreground bokeh from picturecorrect.com and petapixel.com:

enter image description here enter image description here

Eric Duminil
  • 2,273
  • 11
  • 17
  • I feel like I've seen that mug image somewhere...? – OnBreak. Sep 11 '18 at 17:13
  • @Hueco: There probably are many variants of this picture on the Internet and the original idea sure wasn't from me. The above picture is mine though, and I think it was featured in the Cactus catalog. – Eric Duminil Sep 11 '18 at 19:15
  • 2
    I love the "chair as gobo!" Necessity is the mother of invention. Did the black lens sitting on the table also serve as some sort of gobo? ;-) – Michael C Sep 11 '18 at 19:42
8

You might want to search for "rim light" or "back light" techniques. Couldn't quickly find an existing question that looked close enough to match that particular usage. But that's basically a (low powered?) flash hidden behind the couple and pointed toward the camera to light just the edges of their profiles. Looks like it might be gelled to give the blue tint, also.

twalberg
  • 5,138
  • 1
  • 12
  • 20
