Spring on shaft with retaining clip

I need to get another component like this but I can't seem to find any manufacturers / retailers.

To describe it:
It is spring mounted on a shaft and retained by bushing on the top and an enlarged shaft diameter bottom. E-clip on top is for securing shaft in place. Spring pushes the pin down.

If anyone knows what they are called, I would like to know.

Eduards
  • 61
  • 3
  • A spring-loaded pin maybe? – am304 Feb 05 '15 at 09:47
  • They are almost what I need but they seem to be connection pins (like test probes). I would need something like that but made out of steel preferably. – Eduards Feb 05 '15 at 09:58
  • 2
    Generically, this would be called a spring plunger. They are common with wither male threads on the exterior, or for press-fitting. I'm not sure what you'd call one that mounts that way specifically. – Ethan48 Feb 05 '15 at 14:35
  • What is this part used for? Is it used for workholding? – Nick Alexeev Feb 12 '15 at 06:04

1 Answers1

5

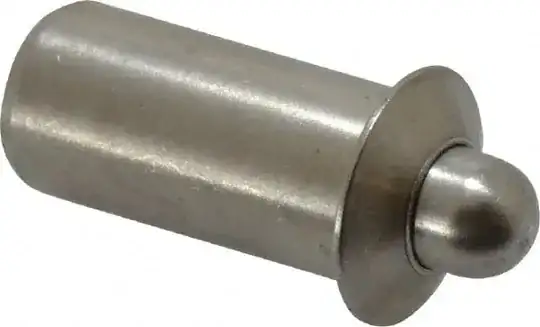

Perhaps a press-fit spring plunger?

Some product codes to get you started: - MCS: 05137617, 05137815, 65155566 - Grainger: 2YLK5, 2YLN2, 2YLL9
