How do I increase speed of my output axle 24 times using 8, 16, 32, and 64 tooth gears using LEGO Mindstorms components? I checked Sariel's website but it was no help.
Asked
Active
Viewed 566 times
2
-
This is binary arithmetic at heart, you have powers of two tooth counts in your question (but you can't get those from Lego) and since 24 isn't a power of two it's going to take a non-trivial mechanism to get it. You could use a brick-built differential, for example... except where do the gears come from. – Móż Oct 26 '16 at 02:28
3 Answers
4
You can't do this with the gears you've listed, but I'm not sure that you've listed the proper gears. I don’t believe that 32 or 64 tooth gears exist. I at least don't have any.

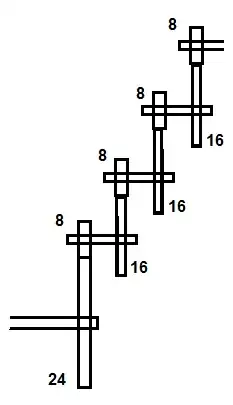

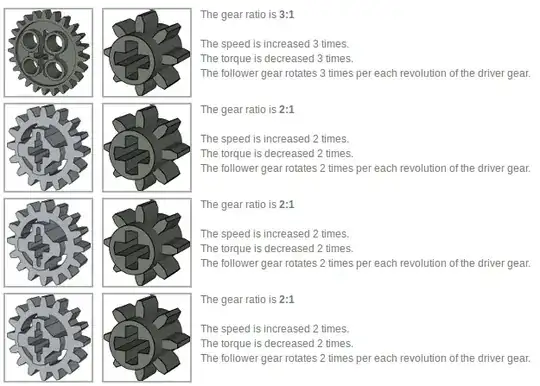

You can do this by combining common 8, 16, and 24 tooth gears. The following gives 3:1 × 2:1 × 2:1 × 2:1 = 24:1.
jncraton
- 40,265
- 10
- 119
- 237
0
You cannot increase the output speed by 24 times using a classical gear system, and the gear teeth you specified, because 24 is not a product you can make from 2, 4, 8, 0.5, 0.25, 0.125.
You CAN, however make a CVT, which takes two input speeds and divides them to give an output.
