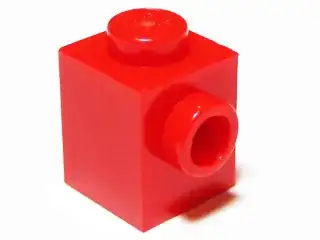

Why does the Erling brick (#4070) have a ridge below its outward facing stud?
Whereas the more versatile and less common #87087 does not? The #87087 piece also has a better use in SNOT usage, as it can accomadate larger bricks.
Asked
Active
Viewed 1,930 times
1 Answers
22
The ridge is there to make the base the standard 5LUs wide (see also "What is an Erling Brick"), enabling it to accept the standard stud.
I believe the rest of the brick was thinned out so that the combined "depth" of the Erling brick and a 1x1 plate (its common usage as a headlight) was the same height as a standard brick.
From the HoMa's World of Bricks page on the Headlight Brick:
If headlight bricks are turned over by 90° and a plate is attached to the stud then this construction is as high as a standard LEGO brick or a layer of three standard LEGO plates.
It also helps to keep the 1x1 plate straight to the bricks edge.
Zhaph - Ben Duguid
- 19,551
- 6
- 78
- 151
-
6Good visual explanation. Amazing little brick. – LarsTech Nov 23 '11 at 16:57
-
2Props to HoMa's World of Bricks for the image. – Zhaph - Ben Duguid Nov 23 '11 at 17:03
-
1I've never seen that brick used that way. – Ambo100 Nov 23 '11 at 17:51
-
3There are a couple more uses as well. Two Erlings one stud apart can have a horizontal brick connect them. And you can use 8 to make a cube to which 2x2 plates can be attached (about the size of a Lego die). Very useful parts! – retracile Dec 01 '11 at 02:22
-
@Ambo100 The Cusoo Delorean uses them in this configuration – Zhaph - Ben Duguid Mar 12 '14 at 20:01
-
1The first use I personally encountered was in 6394: See the top left corner in step 7 of the instructions: Metro Park & Service Tower – Todeswaldi Aug 16 '15 at 09:43
