What elements do I need to create a smooth multi cheese slope ramp?

Question

I love cheese slopes, but I am having issues when I try to produce a smooth gradient using several in succession. I end up with a gentle saw tooth effect at each junction. What combination of elements do I require to get the smooth appearance I'm trying to achieve?

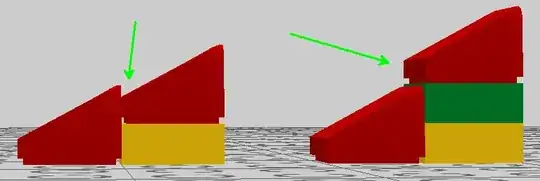

Offsets with cheese slopes

I think I can see the problem, I'll add a temporary render for now ;) — Zhaph - Ben Duguid, Jun 10 '14 at 09:11
From that pic it seems like not even a half-plate resolution will be perfect, but better. A quarter-plate offset might do the trick. — gev, Jun 10 '14 at 09:29

score 15 · Accepted Answer · answered Jun 11 '14 at 00:45

15

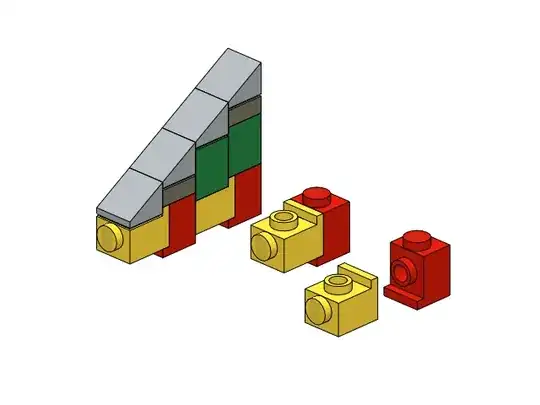

To create a smooth surface with cheese slopes they must be offset by one-half plate in height. There are several techniques to do this. Here is one using the common "headlight" brick. It has the advantage of being extendable to nearly any length.

enter image description here

answered Jun 11 '14 at 00:45

62Bricks

3,909
26
31

Ahah! I knew Erling bricks were involved, but didn't have the time to dig deep enough ;) – Zhaph - Ben Duguid Jun 11 '14 at 08:45

score 10 · Answer 2 · answered Jun 10 '14 at 14:52

10

This would be a way but other techniques may suit you as well.

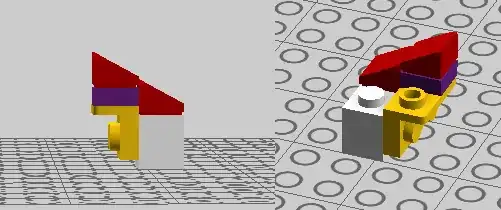

One among many ways to make smooth cheese slope ramps

answered Jun 10 '14 at 14:52

Veynom

537
2
12

Looks good, but how long of a slope could you make like this? – gev Jun 10 '14 at 19:49
