What is the inner/outer or mid radius of the 45 degree arc the following element makes?

https://www.bricklink.com/v2/catalog/catalogitem.page?P=65473 enter image description here

I tried to align several of the elements in 90 and 180 degree arcs in stud.io, the end of the arc never seems to align with any modules, so I'm inclined to think the radius is nonsensical. Is there any way two or more of these elements can be combined so the open ends align with in system modules?

Jme
  • 128
  • 1
  • 12
Michael Verschaeve
  • 11,064
  • 1
  • 25
  • 62

1 Answers1

7

After a bit of fiddling in LeoCAD, I can confirm that the mid radius (i.e. the distance from the center of the torus to the axis of an axle) is 3.5 studs plus 2 LDUs (equal to 3.6 studs, or 72 LDUs).

Consequently, the inner radius is 2.6 studs (or 52 LDUs), and the outer radius is 4.6 studs (or 92 LDUs).

CAD drawing of a quarter-torus, annotated

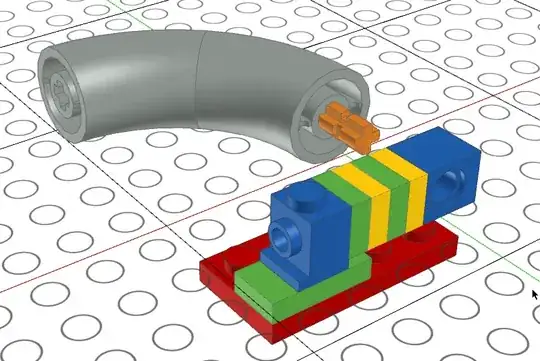

Note that the odd offset (2 LDUs / 0.1 studs) is half of the "lip" of a headlight brick, or half the height of a stud's cylinder. There are techniques to achieve a 2 LDU offset; see e.g. this question. Here's a possible assembly, just to demonstrate:

torus-aligning assembly, perspective torus-aligning assembly, front

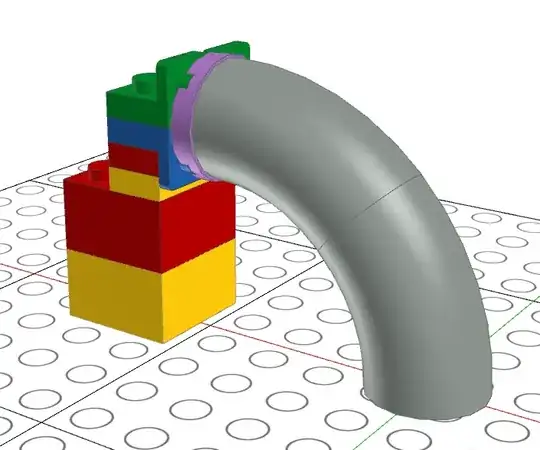

Edit: it has been noted that 72 LDUs is also the height of three bricks. This allows to, for example, align a 2x2 round tile using brackets like so:

torus aligned with a 2x2 tile at 3 bricks of height torus aligned with a 2x2 tile at 3 bricks of height
