The image below is a LEGO specimen stage designed for a stereo microscope. I am looking for a recommendation for a PC controlled motors that allows for very small and precise movements.

I want use the motors attached to my specimen stage to make a very small height adjustment and then I want to send a command and capture an image from the camera-mounted to the microscope.

Here is the workflow I hope to achieve by motorizing the specimen stage:

  • On KeyPress (from with C# Windows application)
    • Activate stepper motor, adjust height (z-axis) by 100-200 µm (maybe 2-4 steps in a 200 step per revolution motor)
    • Wait 200 ms (allow time for vibrations from movement to stop)
    • Activate Camera - capture an image
    • Save image (auto-named) to my folder.

Possibly using SDK like: https://github.com/pololu/pololu-usb-sdk

Any Suggestions?

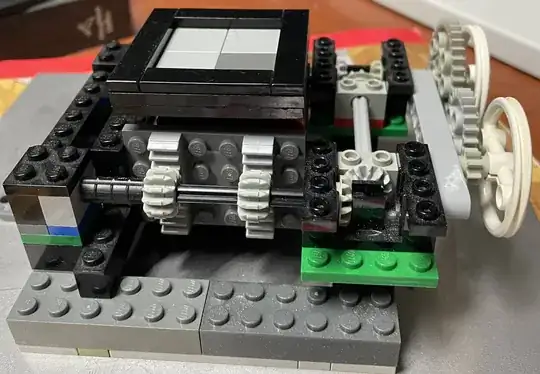

Lego specimen stage

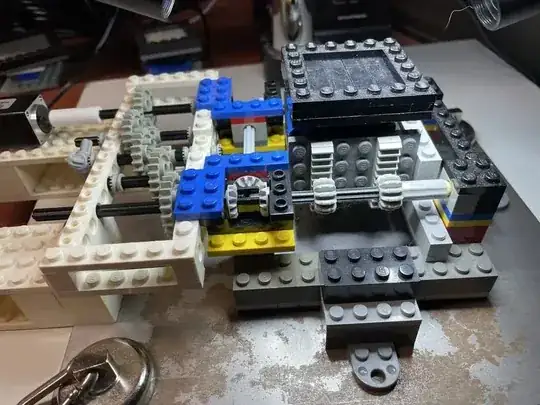

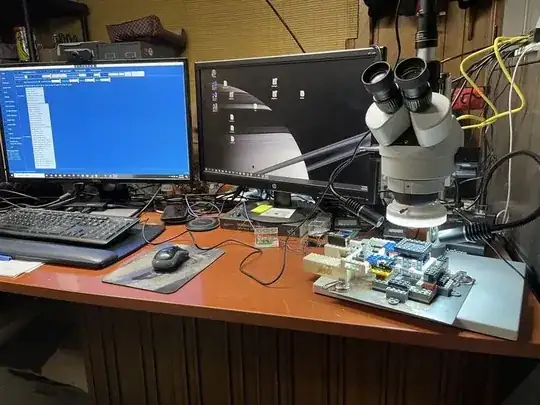

Working solution: The picture with the stepper motor on the input: enter image description here Full View: enter image description here

zovits
  • 16,181
  • 1
  • 41
  • 80
Gary Kindel
  • 279
  • 1
  • 7
  • 1
    What is "very small" ? How precise ? Did you account for the inherent slack in the system from the gearing (turning the first gear in a series of connected gears needs some movement before the last gear in the series starts moving) ? Does it need to be immediately reactive (is it allowed for the movement to take a while to occur and/or complete) ? – Sander De Dycker May 13 '22 at 15:04
  • 2
    Worm gears are usually slow, but quite accurate. – Alex May 13 '22 at 15:21
  • 2
    My first thought would be to hook a servo motor to an Arduino board, and use the Arduino's serial-over-usb capabilities to receive commands from a computer. However, the slack inherent in technic gears is gonna be an order of magnitude larger than the precision of any half-decent servo. If the goal is to raise/lower the platform repeatidly, two chained worm gears might be a better option. – IvanSanchez May 13 '22 at 17:07
  • The slack in the technic gears are a problem. I am currently minimizing this affect by always adjusting upward because weight of the stage + slack of the gears does cause the platform to drop when adjusting the height downward – Gary Kindel May 13 '22 at 17:14
  • That's why newer designed gears to fix this issue. – LKBricks May 14 '22 at 00:04
  • 1
    LEGO gears were never designed to be precise so there always going to be some slack. But as I mentioned, you can achieve reasonable accuracy with worm gears. This would work if you want to make fine adjustment in single direction - while doing so you will have all gearing connected snugly, thus reducing any slack. But if you moved something to far and need to move it back a little then all gearing will come out of accurate setup until you reduce slack in opposite direction. – Alex May 14 '22 at 04:45
  • Ok I need to my improvements – LKBricks May 15 '22 at 00:41
  • Should I use a stepper motor or servo motor or are these the same. Can someone help me understand the differences? thx – Gary Kindel May 16 '22 at 13:02
  • The stepper motor is an open loop motor with gear like rotor that rotates otayes in steps (not continuously going) and servo used a position sensor that rotates by an gearbox until exactly at X degrees – LKBricks May 17 '22 at 05:43
  • I don't have any motors with positioning systems. – LKBricks May 17 '22 at 10:36
  • Or I don't have a 3D printer to make adapters – LKBricks May 17 '22 at 10:43
  • 2
    You could always build your own stepper motor from a regular lego motor, eg. one of sariel's designs. – Sander De Dycker May 17 '22 at 15:51
  • 1
    this is too much adjusting the x y movement, but you can use LEGO motors with a rotation sensor that you can use as a servo. – LKBricks May 18 '22 at 00:22
  • i don't have a knob wheel in my parts – LKBricks May 18 '22 at 00:54
  • i don't have enough parts for my improvements like fewer gears or anything – LKBricks May 19 '22 at 04:56
  • delayed, pls wait for an answer to my fans.. – LKBricks May 31 '22 at 11:49

1 Answers1

1

Lego gear teeth have a pitch of 3.2mm (I did not measure. Maybe trust the www?)

You want .2mm or 200 µm.

3.2mm / .2mm = 16

Worm gears provide this with 360 degrees/16 = 13.5 degrees

I'd suggest 4 motors, each driving one set of worm gears on the four corners of the platform being raised/lowered. Of course, you may not have four motors. Adding a gear train will lower the accuracy. There are 40 tooth gears, that when combined with the 8 tooth gears could work. The worm gears are tricky, they need to be braced; their symmetry is not obvious.

Interesting problem.
